Developer's Guide to Cognito with Stackery

Matthew Bradburn

Stackery has a cloud-based app for building and deploying serverless applications, and we use Cognito for our own authentication. This guide will help you set up an authentication back-end for a largely static site.

Cognito is AWS’s cloud solution for authentication – if you’re building an app that handles users with passwords, you can use AWS to handle the tricky high-risk security issues related to storing login credentials. No need to go it alone! Pricing is based on your number of monthly active users, and the first 50k users are free. For apps I’ve worked on, we would have been very pleased to grow out of that free tier. Cognito can also handle social logins, such as “log in with Facebook” and so forth.

One initial barrier to learning Cognito is the number of different architectures and authentication flows that can be implemented. You can use it from a smartphone app or a web app, and you may want to talk to Cognito from the front end as well as the back-end. And security-related APIs tend to be complicated in general.

Ordinarily, you’d do sign-in from a more structured javascript environment like React but in this case, we want to create user accounts from a back-end NodeJS server and we needed to do sign-in from a mostly-static website. This isn’t all that tricky, but the problem with not using React is that a lot of examples aren’t applicable (if you want some great React Tutorials for Cognito, check out serverless-stack’s and Nader Dabit’s on Hackernoon).

Account Creation

User accounts are created programmatically from the API server, which talks to Cognito as an administrator. A user record within your own database needs to be created at that time, so that process needs to be controlled. For security, don’t store user credentials yourself. The Cognito user pool should be configured such that only admins can create users – the users do not sign themselves up directly.

Setting up the Cognito User Pool is easy once you know what to do. The Cognito defaults are good for what we’re doing; although we disable user sign-ups and set “only allow administrators to create users”. We have a single app client, although it’s possible to have more. When we create the app client, we do not ask Cognito to generate a client secret – since we do log in from a web page, there isn’t a good way to keep secrets of this type. We set “enable sign-in API for server-based authentication”, named ADMIN_NO_SRP_AUTH. “SRP” here stands for “Secure Remote Password”, which is a protocol in which a user can be authenticated by a remote server without sending their password over the network. It would be vital for doing authentication over an insecure network, but we don’t need it.

Assuming you’re creating your own similar setup, you’ll need to note your User Pool ID and App Client ID, which are used for every kind of subsequent operation.

Cognito also makes a public key available that is used later to verify that the client has successfully authenticated. Cognito uses RSA, which involves a public/private key pair. The private key is used to sign a content payload, which is given to the client (it’s a JWT, JSON Web Token), and the client gives that JWT to the server in the header of its authenticated requests. Our API server uses the public key to verify that the JWT was signed with the private key.

There are actually multiple public keys involved, but they’re available from Cognito as a JWKS (“JSON Web Key Set”). To retrieve them you have to substitute your region and user pool ID and send a GET to this endpoint:


To get a user account created from the website, we send an unauthenticated POST to our API server’s /accounts endpoint, where the request includes the user’s particulars (name and email address) and plaintext password – so this connection to the API server must obviously be over HTTPS. Our API server creates a user record in our database and uses the key as our own user ID. Then we use the Cognito admin API to create the user.

const AWS = require('aws-sdk'); const cognito = new AWS.CognitoIdentityServiceProvider(); // userId - our user record index key // email - the new user's email address // password - the new user's password function createCognitoUser(userId, email, password) { let params = { UserPoolId: USER_POOL_ID, // From Cognito dashboard "Pool Id" Username: userId, MessageAction: 'SUPPRESS', // Do not send welcome email TemporaryPassword: password, UserAttributes: [ { Name: 'email', Value: email }, { // Don't verify email addresses Name: 'email_verified', Value: 'true' } ] }; return cognito.adminCreateUser(params).promise() .then((data) => { // We created the user above, but the password is marked as temporary. // We need to set the password again. Initiate an auth challenge to get // started. let params = { AuthFlow: 'ADMIN_NO_SRP_AUTH', ClientId: USER_POOL_CLIENT_ID, // From Cognito dashboard, generated app client id UserPoolId: USER_POOL_ID, AuthParameters: { USERNAME: userId, PASSWORD: password } }; return cognito.adminInitiateAuth(params).promise(); }) .then((data) => { // We now have a proper challenge, set the password permanently. let challengeResponseData = { USERNAME: userId, NEW_PASSWORD: password, }; let params = { ChallengeName: 'NEW_PASSWORD_REQUIRED', ClientId: USER_POOL_CLIENT_ID, UserPoolId: USER_POOL_ID, ChallengeResponses: challengeResponseData, Session: data.Session }; return cognito.adminRespondToAuthChallenge(params).promise(); }) .catch(console.error); }

Of course, the server needs admin access to the user pool, which can be arranged by putting AWS credentials in environment variables or in a profile accessible to the server.

Cognito wants users to have an initial password that they must change when they first log in. We didn’t want to do it that way, so during the server-side account creation process, while we have the user’s plaintext password, authenticate it and set the user’s desired password as a permanent password at that time. Once that authentication completes, the user password is saved only in encrypted form in Cognito. The authentication process gives us a set of access and refresh tokens as a result, but we don’t need them for anything on the server side.

Client Authentication

When the users later want to authenticate themselves, they do that directly with Cognito from a login web form, which requires no interaction with our API server. Our web page includes the Cognito client SDK bundle. You can read about it on NPM, where there’s a download link:


Our web page uses “Use Case 4” described on that page, in which we call Cognito’s authenticateUser() API to get a JWT access token. That JWT is sent to our API server with subsequent requests in the HTTP Authorization header.

Server Verification

The API server needs to verify that the client is actually authenticated, and it does this by decoding the JWT. It has the public key set that we downloaded as above, and we follow the verification process described here:


One of the items in the JWT payload is the username, which allows us to look up our own user record for the authenticated user.

How Stackery can help

As you continue to build with Cognito, Stackery can help you create complex architectures that your whole team can collaborate on.

Stackery generates CloudFormation templates using a powerful visual canvas and can create both Cognito User Pools and User Pool Clients


Stackery also manages your environments and secrets, with easy controls for team permissions.

Tour some of Stackery’s other capabilities in under four minutes with this video:

Stackery Product Features on YouTube

Related posts

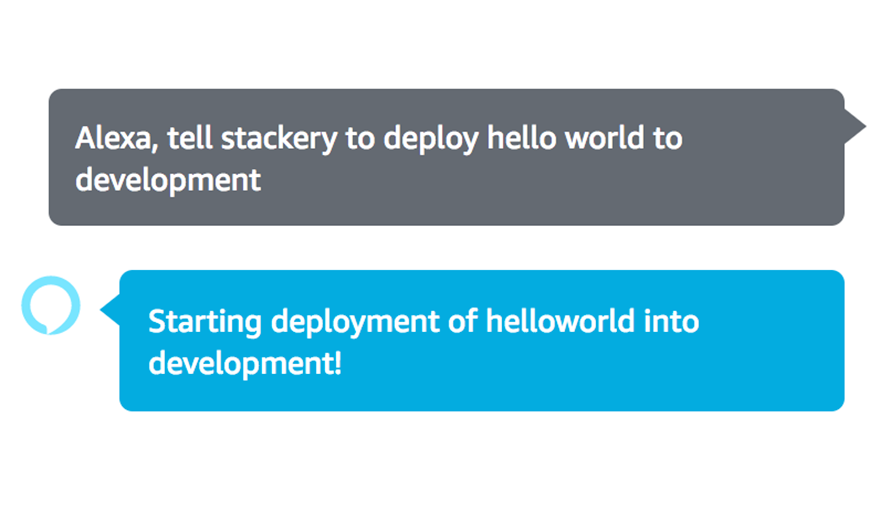

Alexa, tell Stackery to deploy
